Precision Machining Parts for Hydraulic

Aug. 22, 2019

Rollyu manufactures and supplies high precision machining components to customers in the hydraulic equipment sector. Some of the components included are custom valve spools, Pneumatic, manifold, cylinders,pump, pistons, sleeves, and valve bodies.


Precision machining plays a crucial role in the manufacturing of hydraulic systems, which are heavily reliant on finely engineered parts to handle fluids under high pressure without leaks or failures. Here are key components in hydraulic systems that typically require precision machining:


1. Hydraulic Cylinders

·     Pistons and Rods: These move within the cylinder to transmit power created by hydraulic fluid movement.

·     Cylinder Barrels: The main body of the cylinder that houses the piston and the hydraulic fluid.

·     Precision in the machining of these parts is essential to maintain tight tolerances that ensure efficient and leak-free operation.

2. Hydraulic Pumps and Motors

·     Gears, Vanes, Pistons: These components are part of different types of hydraulic pumps like gear pumps, piston pumps, or vane pumps.

·     Casings/Housings: These enclosures contain and protect the internal components from external conditions and also contain the hydraulic fluid.

·     Each component requires exact machining to create efficient and reliable pumps and motors that maintain consistent fluid flow under variable pressures and volumes.

3. Valves

·     Spools: Precision-machined spools direct the flow of hydraulic fluid within control valves.

·     Bodies: The main housing for valves which hold all internal components securely.

·     Valves might require micro-level precision to ensure they activate and deactivate at the correct pressures and flow rates.

4. Fittings and Connectors

·     Hose Fittings, Adapters, and Couplings: These components must be precisely machined to ensure tight seals to prevent leaks at connection points in the hydraulic system.

·     Precision in threading and surface finish is particularly important for maintaining system integrity under pressure.

5. Manifolds

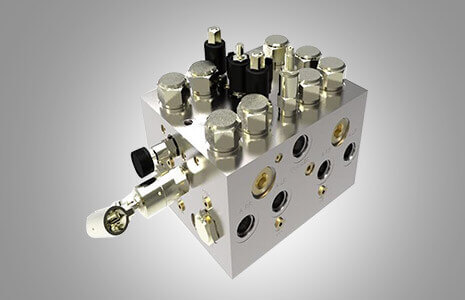

·     Hydraulic Manifolds: These are used to regulate fluid flow between pumps and actuators, sensors, and other components.

·     They require precise machining to accommodate various valve configurations and to ensure proper flow paths for the hydraulic fluid.

6. Seals and Gaskets

·     While not necessarily machined, these components must be precisely fabricated to fit machined parts and ensure fluid containment and prevent contamination.

·     Materials such as rubber, PTFE, or metal are used depending on the required resilience and compatibility with hydraulic fluids.

Materials Used

·     Stainless Steel: Common for parts that need corrosion resistance.

·     Aluminum: Used where weight is a concern.

·     Carbon Steel: Often utilized for its strength and durability.

·     Brass: Sometimes used in fittings and connectors for its resistance to corrosion and spark-freeness.

Machining Technologies

·     CNC Machining: Offers high precision and repeatability for producing hydraulic system components.

·     EDM (Electrical Discharge Machining): Used for producing complex shapes or when the material is too hard for traditional machining.

·     Laser Cutting and Water Jet Cutting: For precise cutting of flat materials or pre-forms.

Quality Control and Testing

·     Pressure Testing: Components are tested under high pressure to ensure they withstand operational stresses.

·     Leak Testing: Ensures there are no leaks at welded or joined surfaces.

·     Dimensional Inspection: Using tools like CMMs (Coordinate Measuring Machines), each part's dimensions are verified to be within specified tolerances.

Precision machining in the realm of hydraulic components is about detail and exact specifications, as even small inaccuracies can lead to system failures, especially in critical applications like aerospace, automotive, or industrial machinery. This reliance on high-precision manufacturing techniques underscores the importance of advanced machining technologies and stringent quality control processes in modern hydraulic systems.
