Jan. 28, 2026
Tolerance Recommendations in Sheet Metal Fabrication: A Practical Guide for Engineers and Buyers
In precision sheet metal fabrication, managing tolerances is far more than just meeting dimensional requirements. It’s the key to ensuring part functionality, smooth assembly, reliable performance, and cost-effective production. Compared to CNC machining, where parts are rigidly fixtured, sheet metal parts are more dynamic — affected by bending, forming, heat input, springback, and material variability. Designing with realistic and manufacturable tolerances is crucial to achieving production stability.
At Rollyu Precision, we apply strict, experience-based tolerance guidelines that balance precision, function, and manufacturability — helping our customers consistently receive parts that meet both engineering intent and practical manufacturing capability.
The Typical Range of Sheet Metal Tolerances
Unlike fully machined parts, sheet metal tolerances vary depending on whether you're dealing with flat profiles, formed features, or secondary operations:
Feature Type | Recommended Tolerance |
Laser Cutting / CNC Punching | ±0.005"–±0.010" (±0.13–0.25mm) |
Hole-to-Hole, Hole-to-Edge Distances | ±0.005"–±0.010" (±0.13–0.25mm) |
Bend Line Position | ±0.010"–±0.020" (±0.25–0.50mm) |
Bend Angles | ±1° |
Flange Height | ±0.010"–±0.020" (±0.25–0.50mm) |
Flatness | ≤0.020" (≤0.5mm) per 12" (300mm) |
Overall Part Size | ±0.020"–±0.030" (±0.5–0.76mm) |
In many cases, tolerances between ±0.005" to ±0.030" (±0.13mm to ±0.76mm) cover the majority of sheet metal features depending on geometry, material, and complexity.
Why Sheet Metal Tolerance Control Is More Complex Than Machining
Sheet metal fabrication introduces several additional sources of dimensional variability that design engineers must consider:
Material springback after bending can alter angles and flange dimensions.
Grain direction affects bend consistency.
Tool wear may influence hole size and edge quality during punching.
Heat input from welding or thermal cutting can distort flatness.
Part handling and stacking during fabrication can shift features if not fixtured properly.
By understanding how sheet metal behaves during fabrication, you can design tolerances that fit the process, rather than fighting against it.
Hole Spacing & Bend Guidelines: DFM Best Practices
To ensure good forming results and minimize distortion, proper hole spacing and bend design rules are essential:
Design Rule | Recommended Value |
Hole to Edge Distance | ≥ 2 × material thickness |
Hole to Bend Distance | ≥ 2.5 × material thickness + bend radius |
Hole to Hole Distance | ≥ 3 × material thickness |
Bend Radius (Aluminum) | ≥ 1 × material thickness |
Bend Radius (Stainless) | ≥ 1.5 × material thickness |
Bend Radius (Copper/Brass) | ≥ 0.75 × material thickness |
Following these rules reduces risks of hole elongation, cracking, edge tearing, and assembly misalignment.
Tolerancing for Different Industries
At Rollyu Precision, we serve industries where tolerance requirements vary significantly depending on application criticality:
Industry | Typical Tolerance Ranges |
Medical Devices | ±0.005"–±0.010" (±0.13–0.25mm) |
Semiconductor Equipment | ±0.005"–±0.010" (±0.13–0.25mm) |
Photonics & Optical | ±0.002"–±0.005" (±0.05–0.13mm, CNC machined after forming) |
Aerospace & Defense | ±0.010"–±0.015" (±0.25–0.38mm) |
Robotics & Automation | ±0.010"–±0.020" (±0.25–0.50mm) |
We work closely with customers in these industries to fine-tune tolerances based on functional needs, downstream assembly conditions, and regulatory compliance.
The Cost of Over-Tolerancing: A Common Design Mistake
Specifying unnecessarily tight tolerances can:
Increase fabrication cost
Extend lead times
Drive up rejection rates
Require secondary machining or rework
Rule of thumb:
Design tolerances to be as tight as necessary — but no tighter — for function and fit.
At Rollyu Precision, our engineering team proactively reviews customer prints and suggests DFM adjustments that reduce cost while maintaining quality and functionality.
How Rollyu Precision Controls Tolerances
Tolerance control at Rollyu Precision is built on process discipline:
✅ DFM review during quoting and design stages
✅ Controlled bending with CNC press brakes and springback compensation

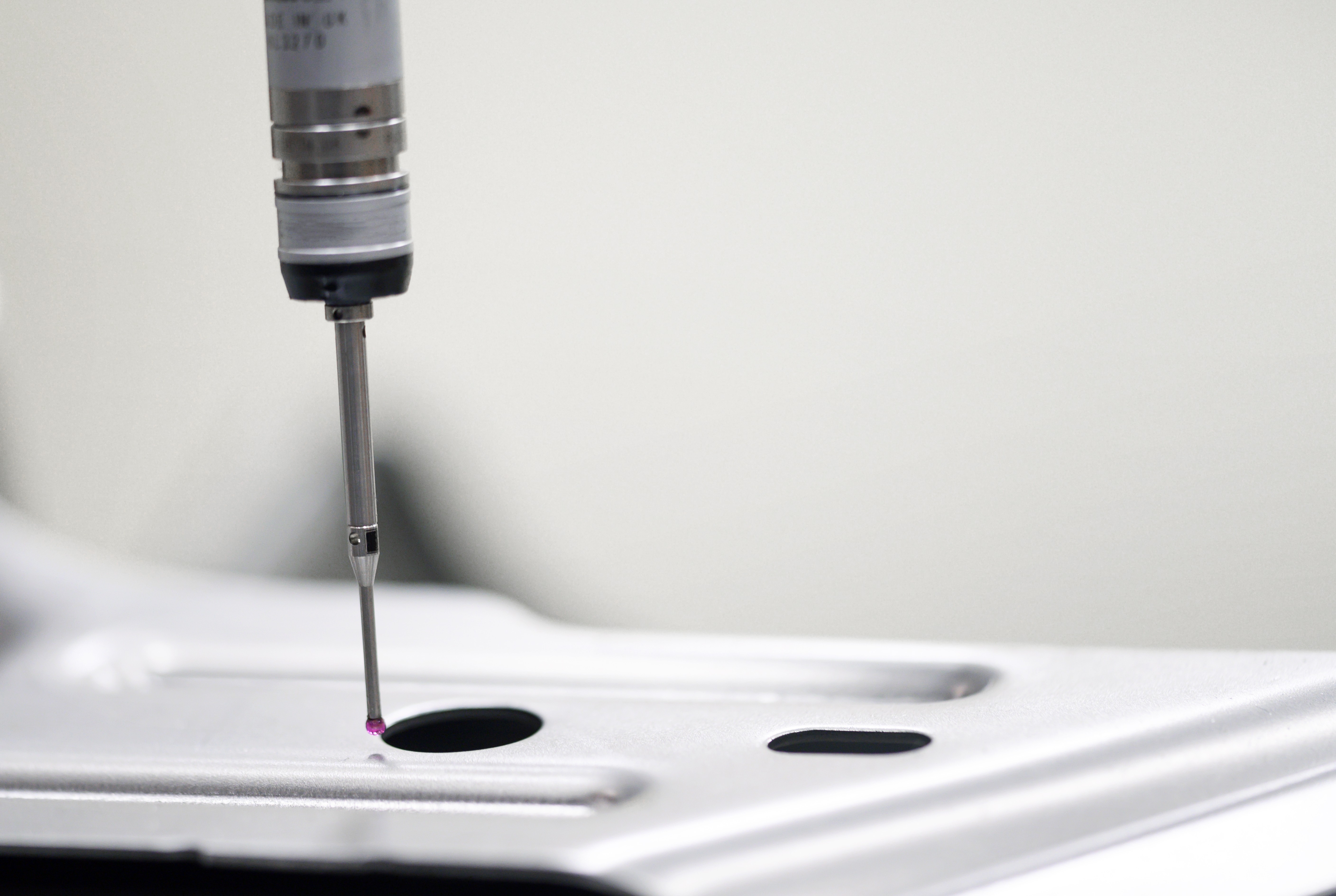

✅ CMM (Coordinate Measuring Machine) inspection on critical dimensions
✅ Statistical process control (SPC) for production stability
✅ Full dimensional inspection reports available upon request
✅ ISO 9001 and ISO 13485 certified quality system
Summary: Precision Is a Process, Not a Guess
Tolerances in sheet metal fabrication aren’t about simply holding numbers — they’re about understanding how sheet metal moves, forms, and reacts to processing. By combining proper DFM design, controlled manufacturing processes, and rigorous inspection standards, Rollyu Precision delivers precision sheet metal components that meet exacting customer requirements across the medical, semiconductor, photonics, aerospace, and automation industries.
